Spark LINK is a high-performance wireless audio transmission system designed for guitar/bass players. It allows you to connect your guitar, bass or any other electric instrument to an amplifier or pedalboard without the need for a physical cable, providing greater freedom of movement and reducing cable clutter. The system uses a large coverage area 2.4 GHz wireless signal, which provides high-quality reliable and stable audio transmission with ultra low latency and interference.
Plug in. Break free.
Wireless Guitar System

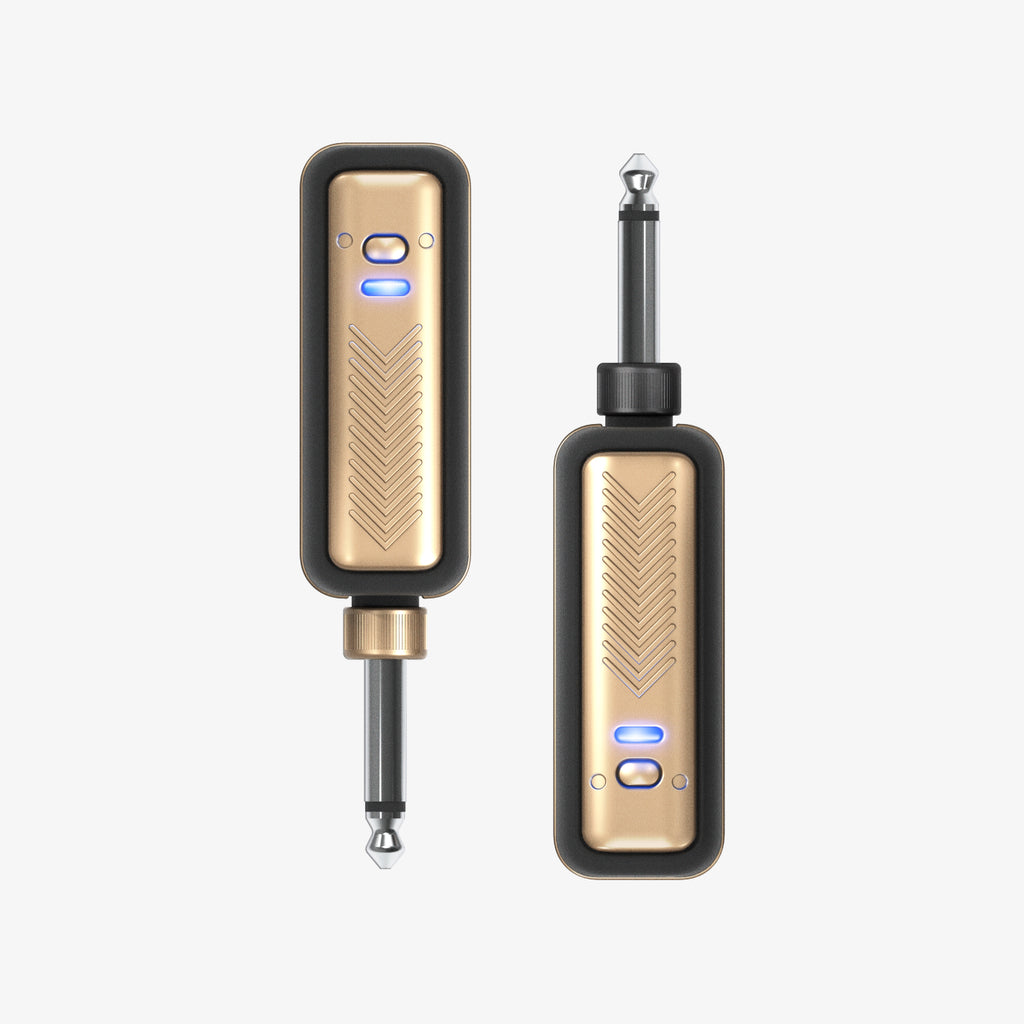

Escape the cable clutter with the Spark LINK Wireless Guitar System. Its sleek design, ultra-low latency, and 70-foot (over 20-meter) range ensure a flawless, noiseless experience at home, on stage and beyond. Just plug in, power on, and play – no complicated setup required. Plus with 4 channels you can use multiple Spark LINKs at the same time. With a flexible hinged input plug, Spark LINK fits virtually every guitar, performance, or practice situation.
${icon.iconText}
Expansive
wireless range.
Enjoy up to 70ft (over 20 meters) of transmission range, allowing you to move freely and connect with your audience without any lag or signal drop. Get up close and personal with your front-row fans or simply play in your living room without cable clutter.
Adaptive design.

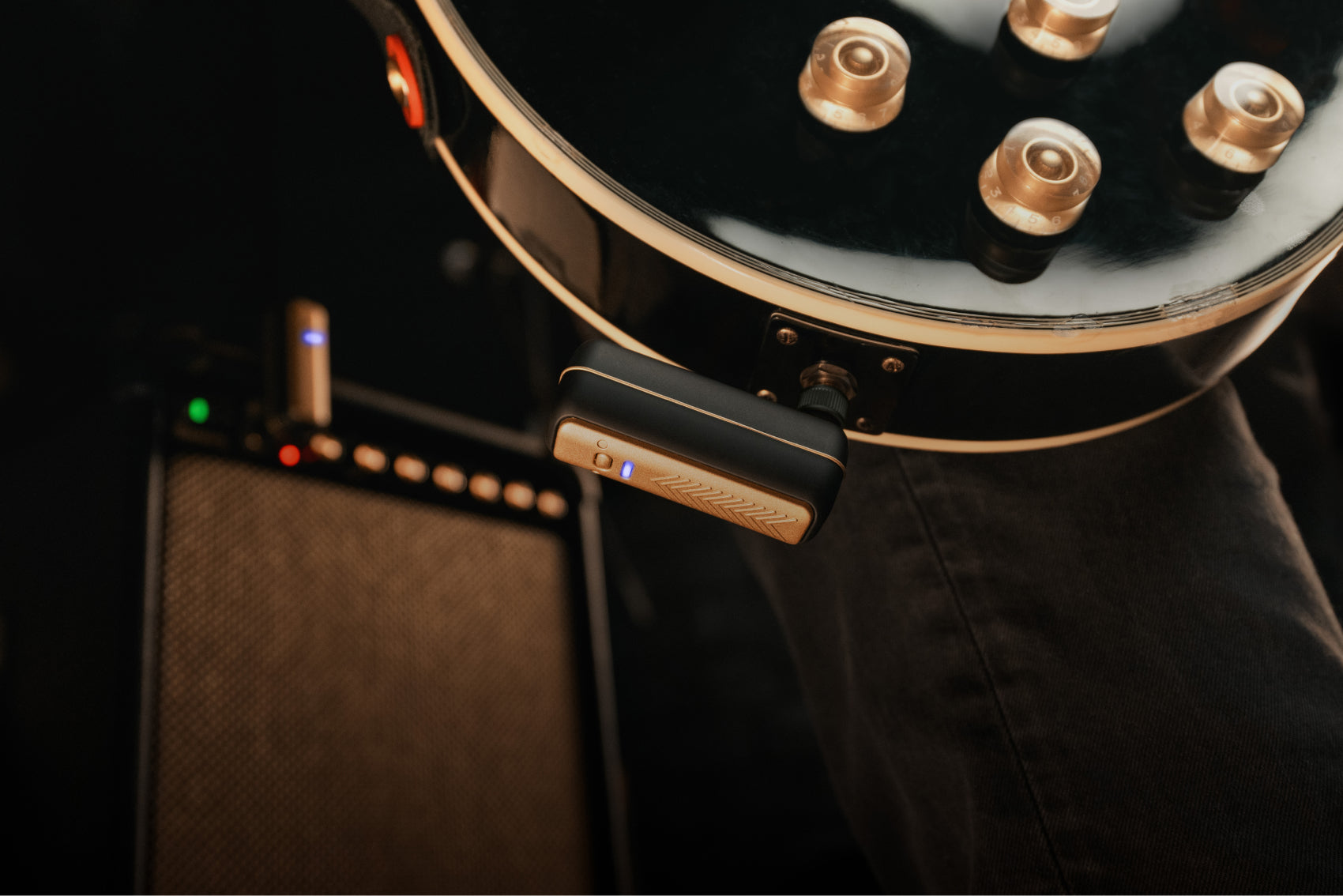

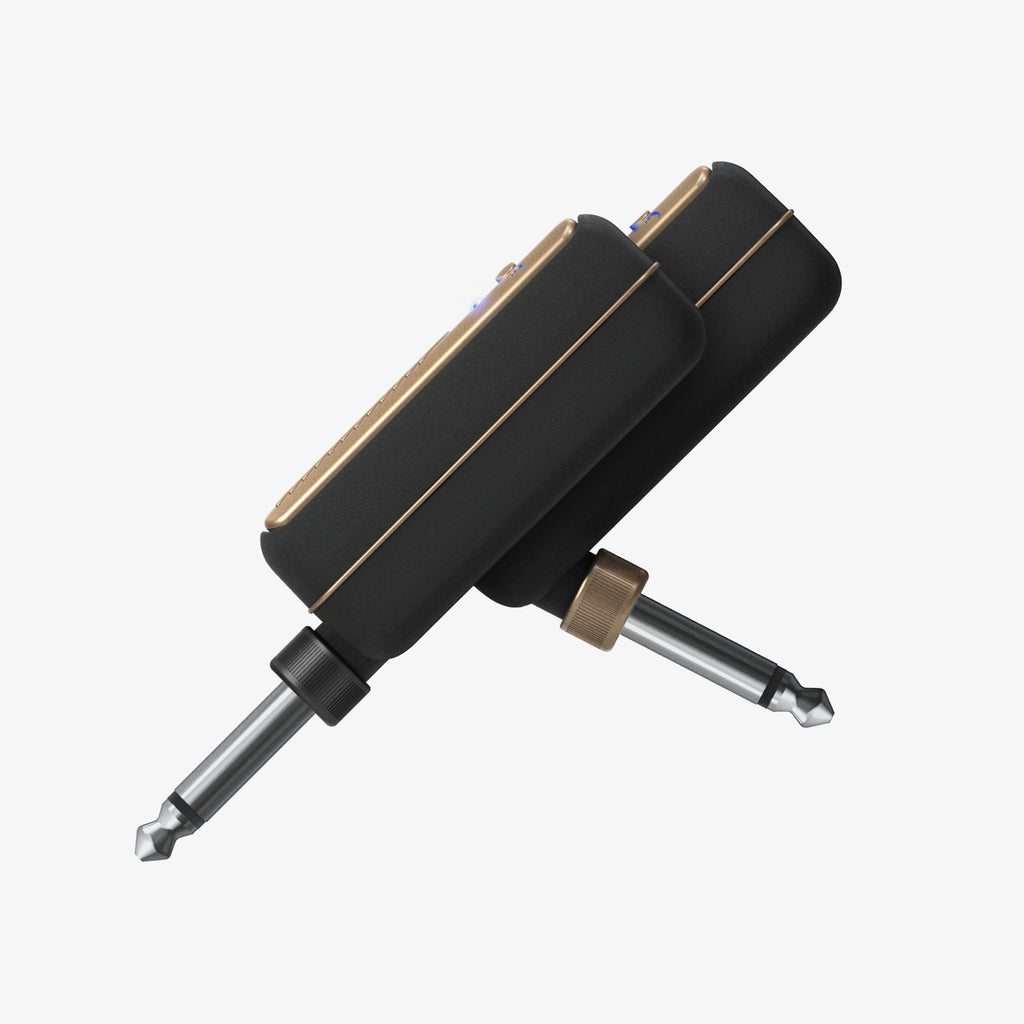

Designed to fit virtually every guitar body and device, the 110° hinged plug of Spark LINK ensures a secure and versatile connection. Use it with any guitar, bass, acoustic guitar, or any instrument with an output.
A Spark essential.

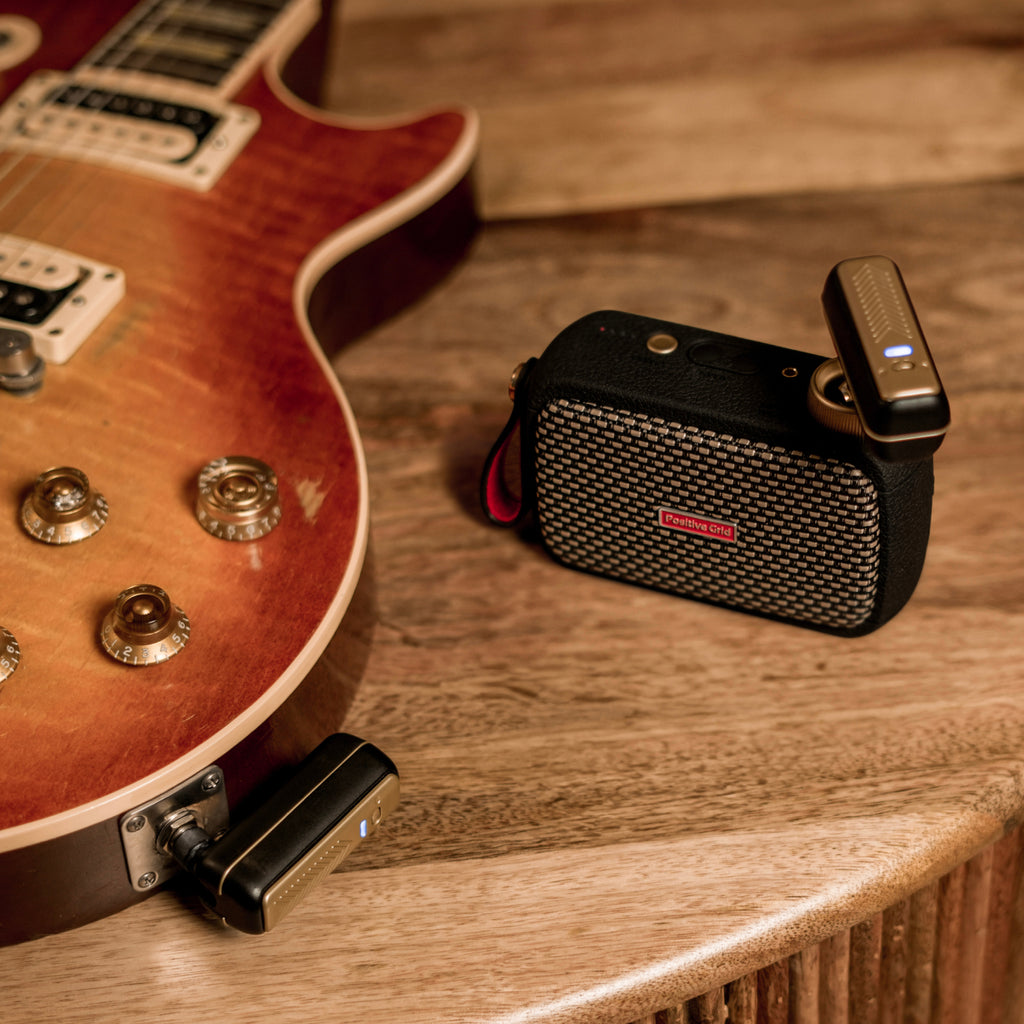

Embracing the sleek, cohesive design of the Spark family, Spark LINK's stylish appearance not only matches Spark series products but also enhances the look of your instrument setup. Of course, you can also use it with any amp, guitar or piece of gear you want to connect to—any time, anywhere.
SPECS
AUDIO SPECIFICATIONS
FREQUENCY RESPONSE
20Hz ~ 20kHz
SAMPLE RATE / BIT DEPTH
48kHz / 24-bit
LATENCY
< 3ms
DYNAMIC RANGE
96dB
CONTROLS AND CONNECTIVITY
TOP PANEL CONTROLS & DISPLAYS
Power button
LED indicator
REAR PANEL CONTROLS
USB Type-C charging port
WIRELESS CONNECTIVITY
Positive Grid proprietary wireless audio (2.4GHz)
TRANSMISSION RANGE
Up to 70 feet line-of-sight (21 meters)
COMPATIBLE CHANNELS
4 channels
PHYSICAL UNIT
DIMENSIONS
Spark LINK TX :
L x H x W : 107.3mm x 27.7mm x 25.4mm (4.2in x 1.1in x 1in)
Spark LINK RX :
L x H x W : 107.3mm x 27.7mm x 25.4mm (4.2in x 1.1in x 1in)
WEIGHT
Spark LINK TX: 39g (0.09lbs)
Spark LINK RX: 38g (0.08lbs)
INCLUDED IN THE BOX
BOX CONTENTS
Spark LINK TX (Transmitter)
Spark LINK RX (Receiver)
USB C to C Cable (1.5 meters)
Quick Start Guide
Safety Instructions
POWER
MAIN INPUT POWER
DC 5V/1A (USB)
BATTERY TYPE
500mAh rechargeable lithium-ion battery
PLAY TIME
Up to 6 hours of continuous use
CHARGING TIME
2 hours
